| MODULO "0" |
| |
| MODULO
EQUIPE "0" |
| N.
of turret partitions |
2-3-4-6 |
| Max.
spindle power |
11
Kw Max (15 HP) |
| Spindle
speed |
0-2200 |
| U
axis travel |
30
mm Max |
| Z
axis travel |
400
mm |
| Spindle
end (tool holder)* |
Cylindrical,
DIN
6327 - Ø 28 mm |
| Weight
(with slide) |
Kg
1100 cad. |
| Dimensions
(from spindle nose to end of spindle motor) |
Length
1530 mm - width 400 mm |
| Turret
rotation time (fast reverse, raising, rotation,
clamping and fast forward) |
position
9" - 5
positions 11" |
| *ISO
40 taper can be used on units which do not incorporate
a differential control unit. |
|

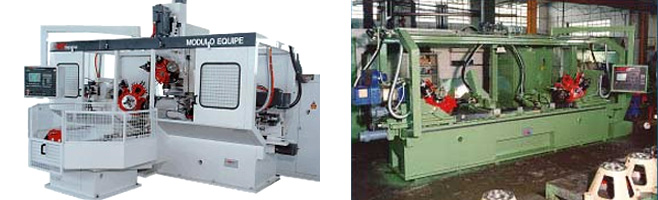

The"Modulo
Equipe" unit combines the advantages offered by rotating-part
machining with those of stationary-part machining.
This unit ensures high productivity together with a remarkable
flexibility, which allows to perform machining operations
on a variety of parts, with extremely easy tool-change.
This high degree of flexibility is made possible by a turret
with six tool-holder stations, that can take tips, taps,
multiple-spindle heads and above all rotary-tool turning
heads.
These rotary-tool turning heads, which perform a radial
movement, allow to perform all types of turning (cylindrical,
taper or spherical turning), thread cutting (cylindrical
and tapered), facing, etc., by means of standard tools commonly
found on the market.
This unit is CNC-controlled and performs the various types
of machining according to a previously stored program.
Turret rotation is produced by a brushless motor, while
positioning is achieved through an original front-coupling
system, developed by TREVISAN.
Axes slide on cross-roller guide shoes.
The spindles as well as the heads that complete this unit
can be mounted easily also at a later time.
"Modulo Equipe" is manufactured by TREVISAN MACCHINE
UTENSILI S.p.A. in three different sizes, which can be used
to obtain any type of plant configuration. |

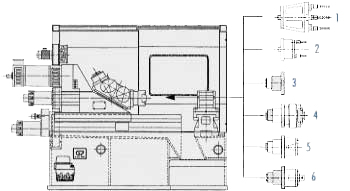

A
wide variety of spindles can be easily fitted on any Modulo
Equipe unit, thanks to a simple draw-in bolt clamping system.
Here are some examples:
 |
| 1) |
Adjustable spindle, multiple
drilling/tapping head with a template; |
| 2) |
Fixed multiple-spindle head; |
| 3) |
Drive attachment for multiple-spindle foreheads; |
| 4) |
Turning head; |
| 5) |
Spindle with ISO taper; |
| 6) |
Spindle with cylindrical tool-holder. |
|
|
| Modulo
equipe |
Turning
head |
Boring
spindle |
Drilling/tapping
heads with
multiple spindles in fixed arrangement |
Adjustable
spindle, multiple drilling /
tapping heads with a template |
| 0
- 1 |
Ø 28 mm |
Ø 160 carriage travel mm 30 |
N° 4 SPINDLES |
N° 4 SPINDLES |
| 0
- 1 - 2 |
Ø
28 mm, Ø 36 mm |
|
N° 6 SPINDLES |
N° 6 SPINDLES |
| 1
- 2 |
Ø
48 mm, Ø 55 mm |
Ø 180 carriage travel mm 30 |
N° 8 SPINDLES |
N° 8 SPINDLES |
| 1
- 2 |
|
Ø 220 carriage travel mm 50 |
|
|
| 1
- 2 |
|
Ø 240 carriage travel mm 70 |
|
|
| 2 |
|
Ø
300 carriage travel mm 70 |
|
|
|
|
| |
|
